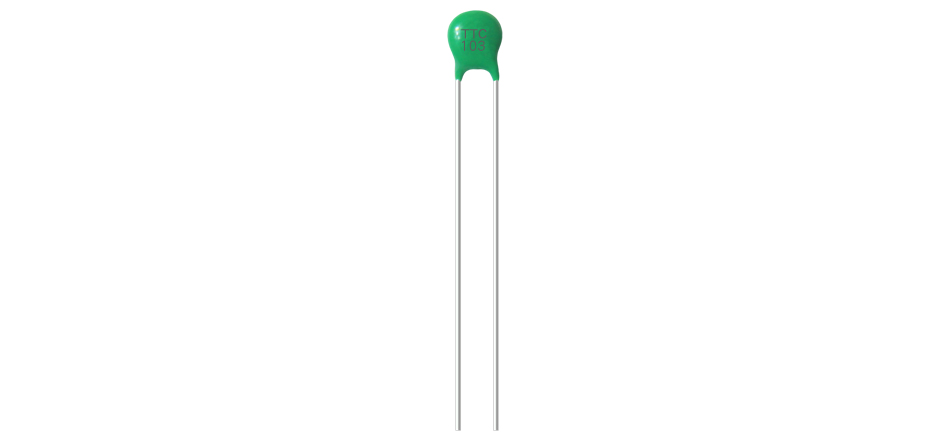

NTC 10K Thermistor TTC05103

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor TTC05103



■ Features

 Band: Thinking Use: For Temperature Sensing/Compensation
 Body Size: Ф05 mm Operating temperature range: - 30℃ ~ +125

 ● ROHS compliant

 ● Halogen-Free(HF)series are available

 ● Radial lead resin coated

 ● Wide resistance range

 ● Cost effective

 Agency recognition:

 UL&CUL File NO:E138827

 CSA File ON: 97495

 TUV File NO: R 50050155

 CQC File NO:CQC05001011991;CQC05001011994

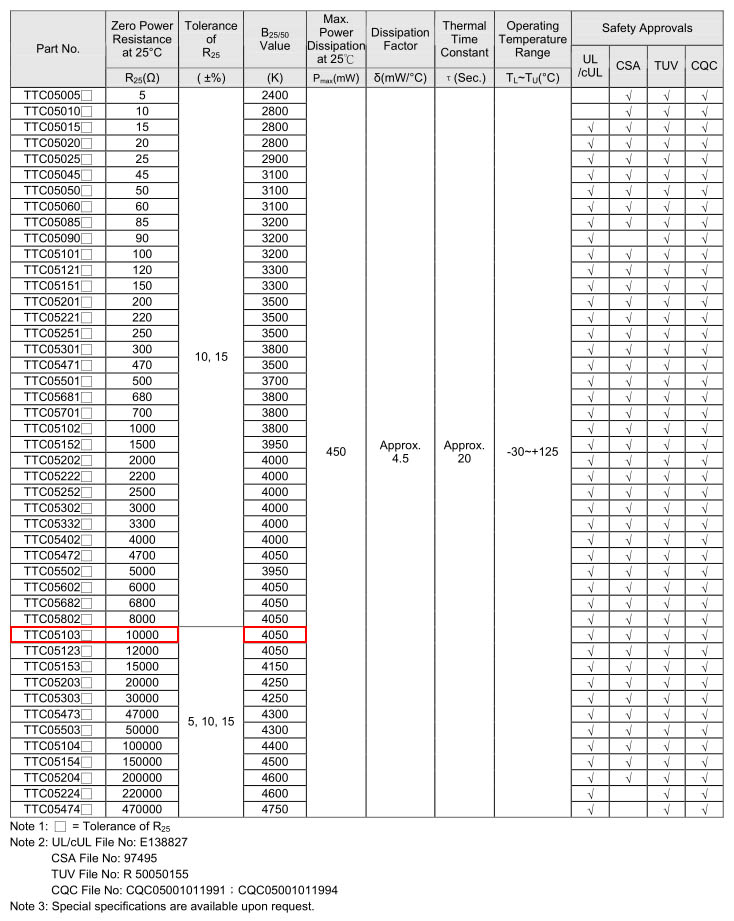

■ Electrical Characteristics (The same resistance value,  the B value of different brands is

 different, you can only choose the most similar one)


    ●  TTC05103 is the hot model

    ●  After you confirm the model, we will send you the samples and datasheet of this model

    ●  Free samples

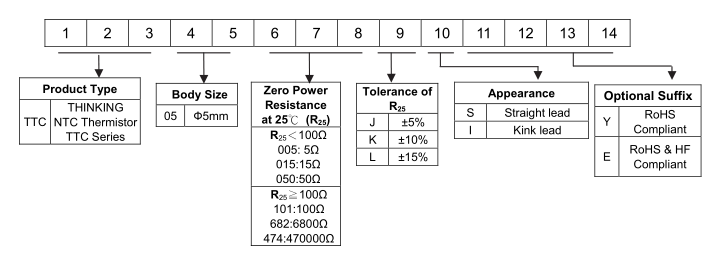

■ Part Number Code


     ●  Full model example:TTC05103JSY ,TTC05103KSY

      ●  Common Suffixes:JSY


■ Recommended Applications

   1. Home appliances

   2. Automotive electronics

   3. Computers

   4. Switch mode power supplies

   5. Adapters

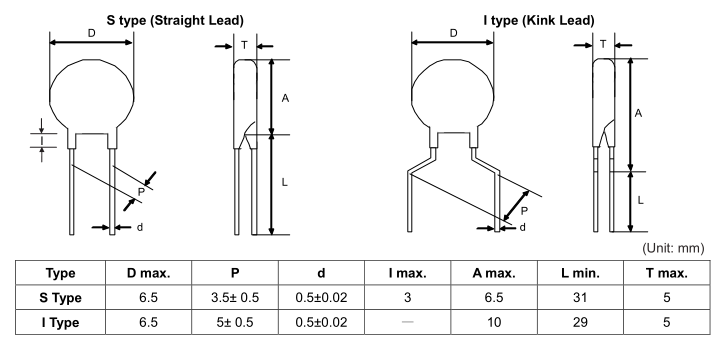

■ Structure and Dimensions (We can cut short the leads according to requirements)

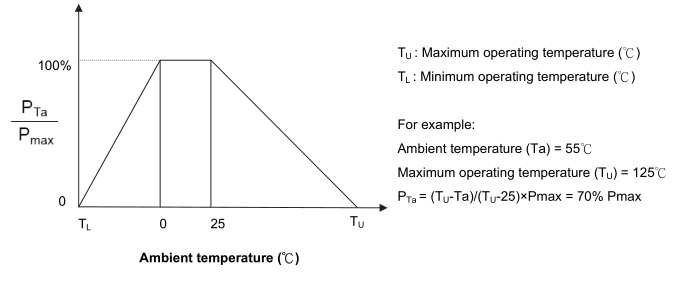

■ Max.Power Dissipation Derating Curve

M .png

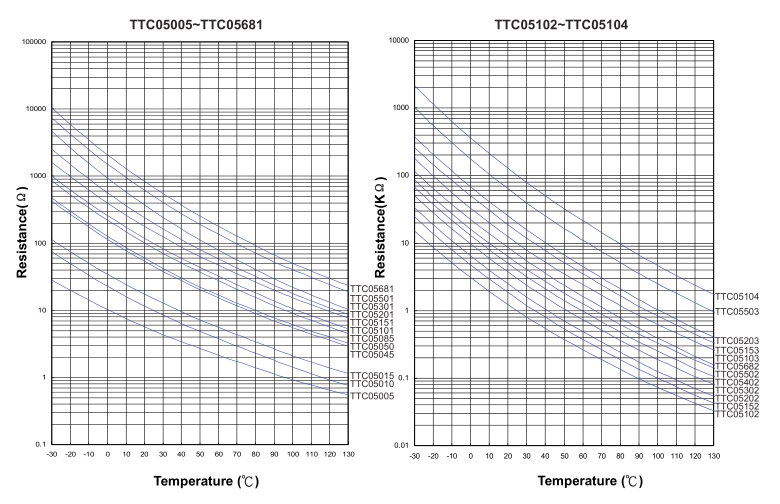

■ R-T Characteristic Curves(representative)

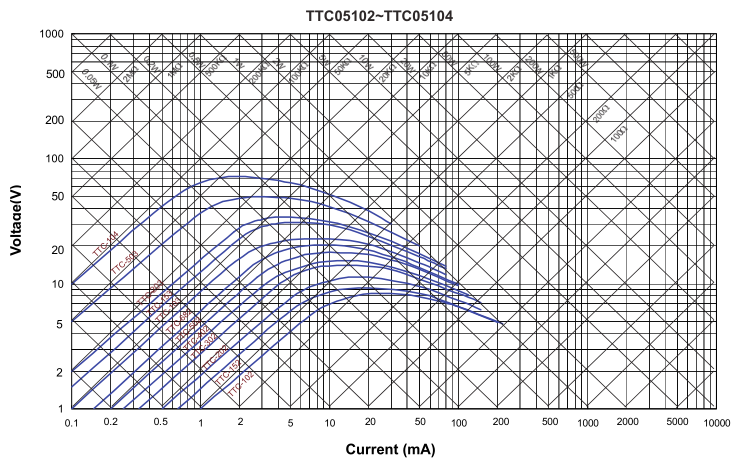

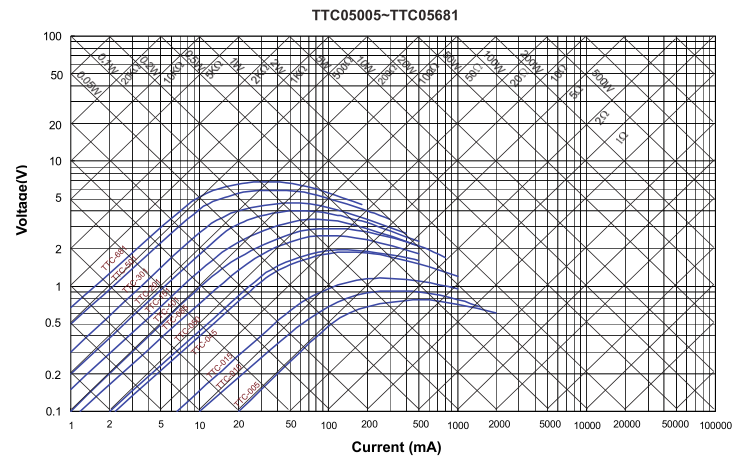

■ V-I Characteristic Curves(representative)

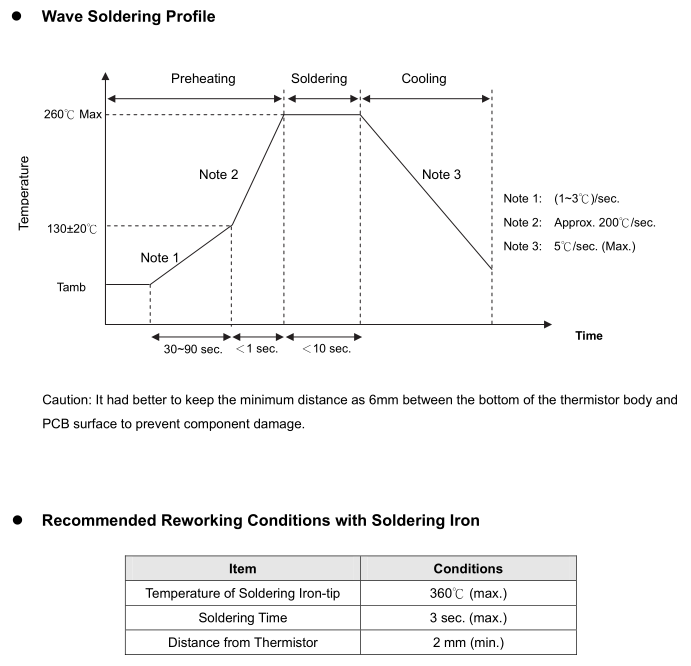

■ Soldering Recommendation

TTC 05 Soldering Recommendation.png

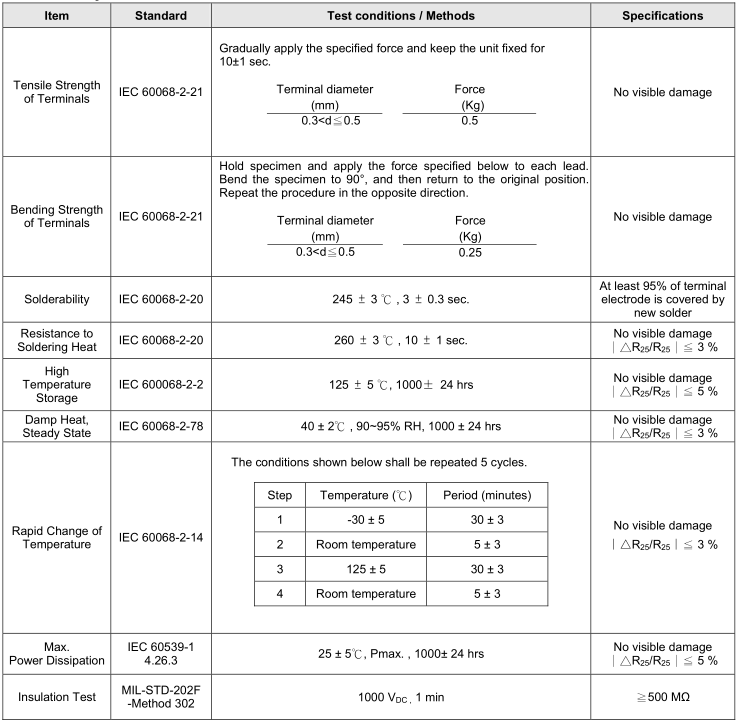

■ Reliability

TTC 05 Reliability.png

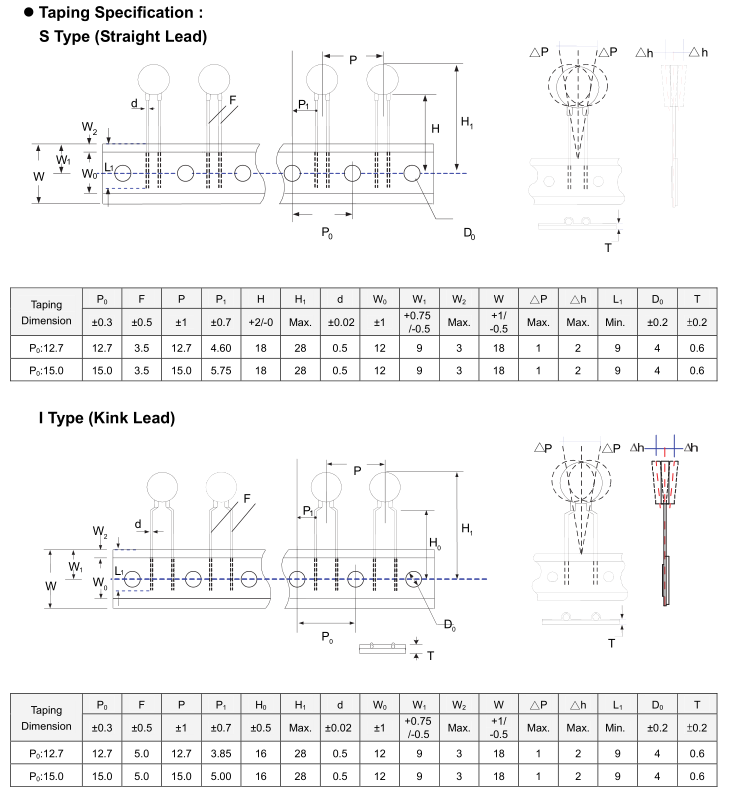

■ Packaging

TTC 05 Packaging.png

            What are the advantages and disadvantages of different packaging methods for varistors?

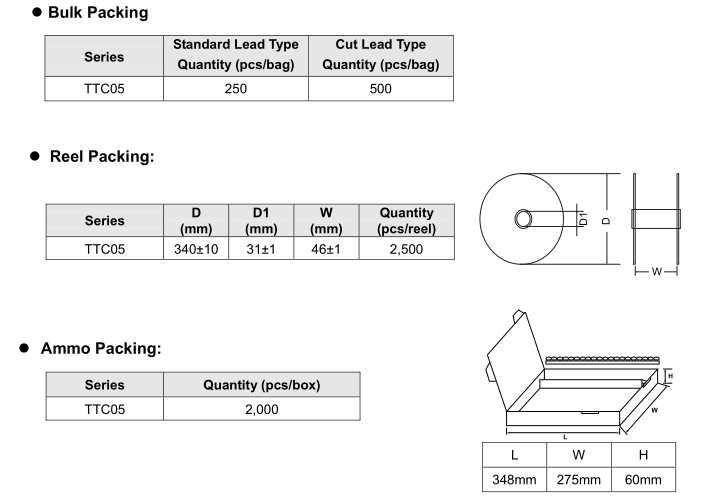

■ Quantity

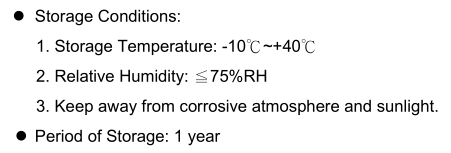

■ Warehouse Storage Conditions of Products

   TTC 05 Warehouse Storage Conditions of Products.png
