Surface Mounted Devices Thermistor

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor Surface Mounted Devices(SMD) Type TSM 10KΩ Series



■ Features

 Band: Thinking Use: For Temperature Sensing

 EIA Size: 0.6×0.3×0.35mm, 1×0.5×0.6mm,

    1.6×0.8×0.95mm,  2×1.25×1mm

 Operating temperature range: - 40℃ ~ +125

 ● ROHS & Halogen-Free(HF)compliant

 ● Highly reliable structure

 ● Wide resistance range

 ● Cost effective

 Agency recognition:

 UL&CUL File NO:E138827

 TUV File NO: R 50050155

 CQC File NO: 12001080962

■ Electrical Characteristics  (Special datasheet are available upon request)

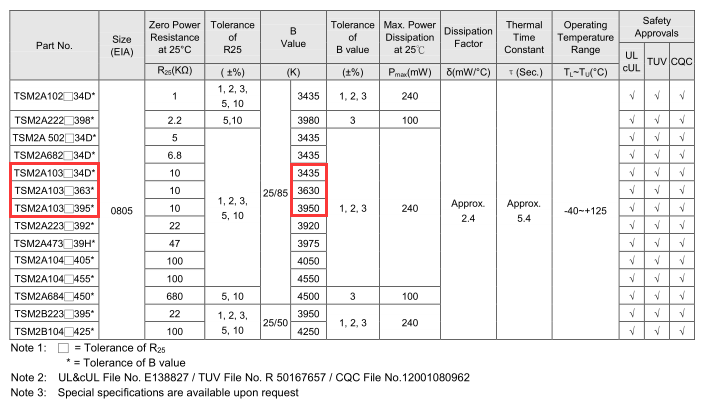

10K 1.png

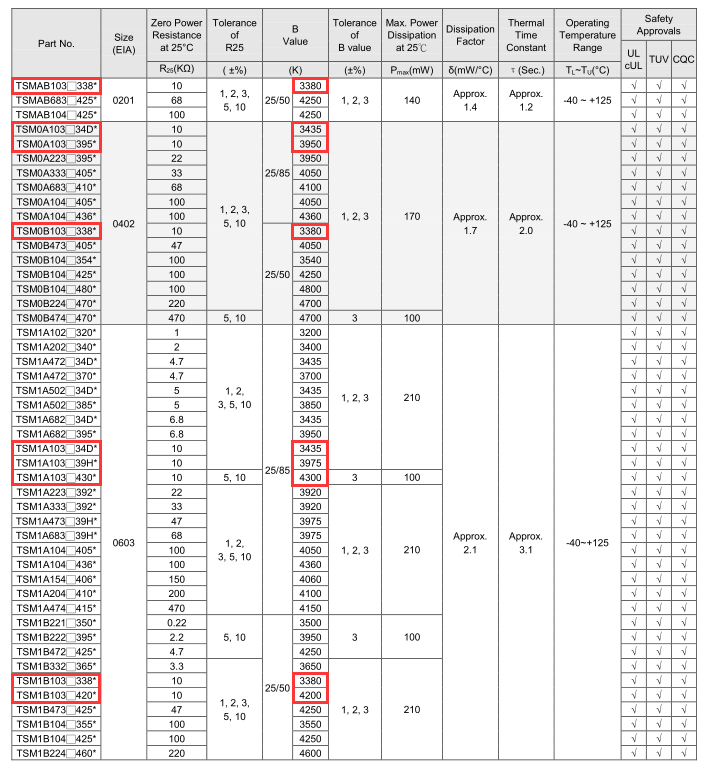

10K 2.png

    ●  After you confirm the model, we will send you the samples and datasheet of this model

    ●  Free samples


■ Part Number Code


    ●  Complete model example: TSM0A103F34D1RZ , TSM2A103F3951RZ

    ●  Common Suffixes:1RZ




■ Recommended Applications

   1. Battery pack

   2. Motherboard, notebook and personal computer device

   3. Liquid crystal display

   4. Cellular phone

   5. Bluetooth headset

   6. Wi-Fi module


■ Structure and Dimensions



■ Max.Power Dissipation Derating Curve



■ R-T Characteristic Curves





■ Soldering Recommendation

    Soldering Recommendation.png


■ Recommended Soldering Pad Dimensions

   Recommended Soldering Pad Dimensions.png

■ Notice of Soldering and Mounting on PC Board

  Notice of Soldering and Monting on PC Board.png

■ Reliability



■ Packaging




■ Quantity



■ Warehouse Storage Conditions of Products

   Warehouse Storage Conditions of Products.png
