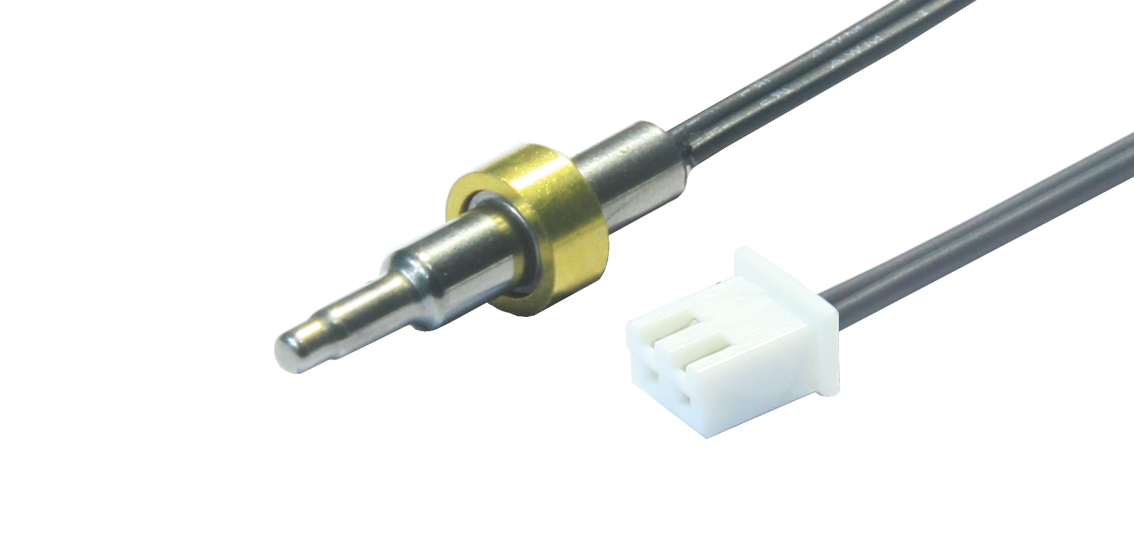

Temp Sensor For Water Heater
Name: Temperature Sensor For Water Heater
■ Features
| Band: Veteng | Use: For coffee maching temperature sensing |
| Product model: VT0503XA164 | Product working temp range: - 30℃ ~ +105℃ |
Agency recognition: UL ROHS | NTC Working Temp.Rage: - 40℃ ~ +200℃
|

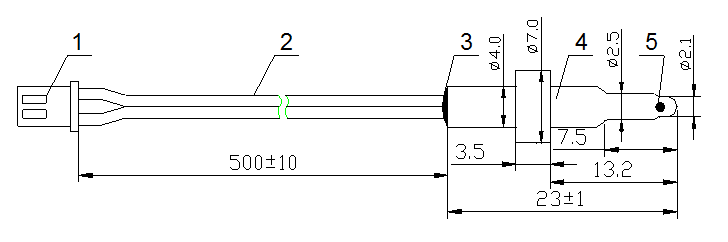

■ Product Drawing
unit: mm
■ Material List
| Item | Material | datasheet | Quantity |
| 4 | shell | 2.1*23.5+3.5*7 shell(304L) (DES1404003 A/0) | 1PCS |
| 5 | NTC Thermistor | LSGR503X3970GXJG (R100=3.3KΩ±2.5% B0/100=3970K±2%) | 1PCS |
| 3 | Epoxy | G-108: GU-01 Black | / |
| 2 | Wire | UL2651 28AWG 2C TS 105℃ 300V Black | 2PCS |
| 1 | Terminal | XH-T | 2PCS |
| Connector | XH-2Y white | 1 PCS |
● The Shell, component, wire, connector, and their color, size, shape, and processing methods， all can
be customized according to your design
● The special shape of the shell and componeng, we can cooperate with the design and manufacture of
new molds
● If you need some samples, please contact us
■ Electrical Characteristic
| NO. | Item | Symbol | Test Conditions | Min. | Nor. | Max. | Unit |
| 1 | Resistance at 0℃ | R0 | Ta=0℃±0.05℃ PT≦0.1mW | / | 162.30 | / | KΩ |
| 2 | Resistance at 100℃ | R100 | Ta=100℃±0.05℃ PT≦0.1mW | 3.22 | 3.30 | 3.38 | KΩ |
| 3 | B Value | B0/100 | 1019.259* LnK | 3890.6 | 3970.0 | 4049.4 | K |
| 4 | Thermal Dissipation Constant | δ | Ta=25℃ | / | 5.0 | / | m W/℃ |
| 5 | Response Time | τ | 25℃→85℃, T1=25+(85-25)*63.2%=62.92℃ | / | 2.0 | / | Sec |
| 6 | Hi-Pot Test | / | AC1500V 3Sec | / | / | 1.0 | mA |
| 7 | Insulation test | / | DC500V 1Sec | 100 | / | / | MΩ |
● The resistance, B value and other parameters can be selected as your requirements
■ Mechanical Tests
| NO. | Item | Pass Criteria | Test Conditions |
|---|---|---|---|
| 1 | Pull Test | Appearance no obvious damage | Fasten body with a load applied to each lead 9.8N for 10 sec |
| 2 | Drop Test | At the height of 1 meters, the product falls freely and falls to the 10mm thick oak board, 5 times |
■ Reliability Tests
| NO. | Item | Pass Criteria | Test Conditions |
|---|---|---|---|
| 1 | High Temperature Storage | ⊿R/R25≤±3% ⊿B/B≤±3% DC500V 1Sec AC3750V 1Sec | 105±5℃，1000±24H |
| 2 | Low Temperature Storage | -30±5℃，1000±24H | |
| 3 | Constant temperature and humidity test | 40±2℃，90%～95% RH,1000H±24H After the test, wait at normal temperature for 2 hours | |
| 4 | Temperature impact test(in air) | –30℃×30min→25℃×1min→105℃×30min→25℃×1min，Cycle 10 times After the test, wait at normal temperature for 2 hours | |
■ Storage Conditions
1 Ambicnt Temperature: -10℃～+40℃
2 Relative Humidity: ≦75%RH
3 Keep away from corrosive atmosphere and sunlight
4 Period of Storage: 1 year
■ Product Application Conditions
1 Maximum service temperature and maximum power in application should not exceeds specification listed in Product Specification;
2 Much be handled with care when moving and installing the product;
3 Product should not be used when deformed or rusty casing is observed on product;
4 Product should not be used when broken housing ,or excessive deformation on housing is observed;
5 Avoid excessive temperature fluctuation when operating the product in its operational temperature range;
6 Do not apply excessive shock and vibration on product;
7 Do not pull or bend the lead wire excessively;
8 Do not use in any ambient with corrosiven gas (CO2,NH3,Sox,Nox);
Do not use in any ambient with electrolytic solution with brine,acid,alkaline and organic
9 Do not use in environment with water.high moisture,and high corrosive solution;
10 Current throught NTC element will cause self-heating,and may affect the measurement;
11 This product belongs to surface appressed type sensor temperature, when using, need to make bottom plane fully and heating;
