Temp Sensor For New Energy

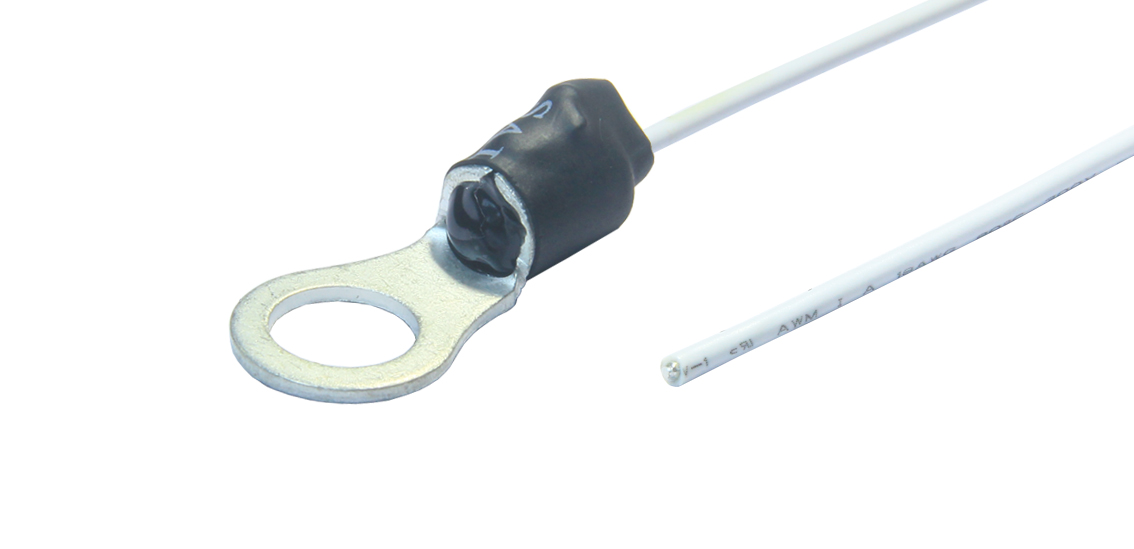

Name: Temperature sensor for New Energy
■ Features
| Band: Veteng | Use: For temperature sensing |
| Product model: VT0103FA050 | Operating temperature range: - 30℃ ~ +80℃ |
Agency recognition: UL ROHS |
|

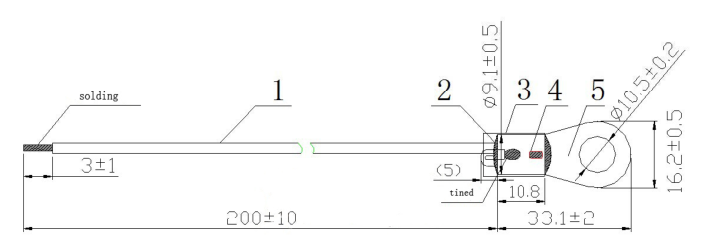

■ Product Drawing
■ Material List
| Item | Material | datasheet | Quantity |
| 5 | Terminal | RNB1-10 tined brass terminal(T=1.5mm) | 1PCS |
| 4 | NTC Thermistor | LSEC103F3950FAJ R25=10KΩ±1% B25/50=3950K±1% | 1PCS |
| 2 | Epoxy | J-106A: J-106B: J-106X Black | / |
| 1 | Wire | UL1007 18AWG TS 80℃ 300V White 210/20mm | 2PCS |
| 3 | Tube | Φ10.0 125℃ 600V Black tube 18mm | 1PCS |
● The Shell, component, wire, connector, and their color, size, shape, and processing methods， all can
be customized according to your design
● The special shape of the shell and component, we can cooperate with the design and manufacture of
new molds
● If you need some samples, please contact us
■ Electrical Characteristic
| NO. | Item | Symbol | Test Conditions | Min. | Nor. | Max. | Unit |
| 1 | Resistance at 25℃ | R25 | Ta=25℃±0.05℃ PT≦0.1mW | 9.90 | 10.00 | 10.10 | KΩ |
| 2 | Resistance at 50℃ | R50 | Ta=50℃±0.05℃ PT≦0.1mW | / | 3.588 | / | KΩ |
| 3 | B Value | B25/50 | 3853.887* LnK | 3910.5 | 3950.0 | 3989.5 | K |
| 4 | Thermal Dissipation Constant | δ | Ta=25℃ (in air) | / | 5.0 | / | m W/℃ |
| 5 | Response Time-In liquid | τ | Ta=25+0.5℃ | / | / | 15 | Sec |
| 6 | Hi-Pot Test | / | AC1500V 3Sec | / | / | 0.5 | mA |
| 7 | Insulation test | / | DC500V 1Sec | 100 | / | / | MΩ |
● The resistance, B value and other parameters can be selected as your requirements
■ Mechanical Tests
| NO. | Item | Pass Criteria | Test Conditions |
| 1 | Pull Test | Not loose, no deformation | The connection strength between housing and wire， pull≥1KG(9.8N) |
| 2 | Drop Test | Appearance no obvious damage | At the height of 1 meters, the product falls freely and falls to the 10mm thick oak board, 5 times |
■ Reliability Tests
| NO. | Item | Pass Criteria | Test Conditions |
| 1 | High Temperature Storage | ⊿R/R25≤±3% No visible damage to appearance | 80±5℃，1000±24H After the test, wait at normal temperature for 2 hours |
| 2 | Low Temperature Storage | -30±5℃，1000±24H After the test, wait at normal temperature for 2 hours | |
| 3 | Constant temperature and humidity test | 60±2℃，90%～95% RH,100H±24H After the test, wait at normal temperature for 2 hours | |
| 4 | Temperature impact test(in air) | –30℃×30min→25℃×5min→80℃×30 min→25℃×5min，Cycle 10 times After the test, wait at normal temperature for 2 hours |
■ Soldering Iron Setting
| NO. | Item | Settings/Parameters |
| 1 | Temperature of Soldering Iron-tip | T≤360℃ |
| 2 | Soldering Time | S≤3Sec |
| 3 | Distance From Thermistor | L≥10mm |
■ Storage Conditions
1 Ambicnt Temperature: -10℃～+40℃
2 Relative Humidity: ≦75%RH
3 Keep away from corrosive atmosphere and sunlight
4 Period of Storage: 1 year
■ Product Application Conditions
1 Maximum service temperature and maximum power in application should not exceeds specification listed in Product Specification;
2 Much be handled with care when moving and installing the product;
3 Product should not be used when deformed or rusty casing is observed on product;
4 Product should not be used when broken housing ,or excessive deformation on housing is observed;
5 Avoid excessive temperature fluctuation when operating the product in its operational temperature range;
6 Do not apply excessive shock and vibration on product;
7 Do not pull or bend the lead wire excessively;
8 Do not use in any ambient with corrosiven gas (CO2,NH3,Sox,Nox);
Do not use in any ambient with electrolytic solution with brine,acid,alkaline and organic
9 Do not use in environment with water.high moisture,and high corrosive solution;
10 Current throught NTC element will cause self-heating,and may affect the measurement;
11 This product belongs to surface appressed type sensor temperature, when using, need to make bottom plane fully and heating;
