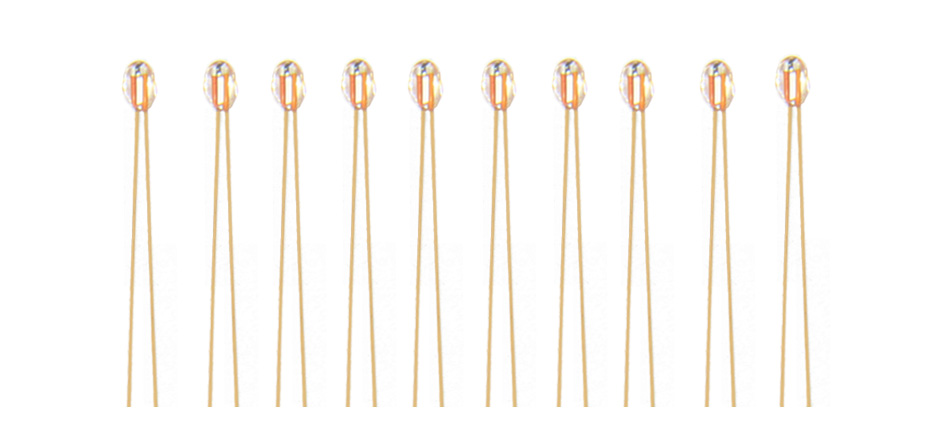

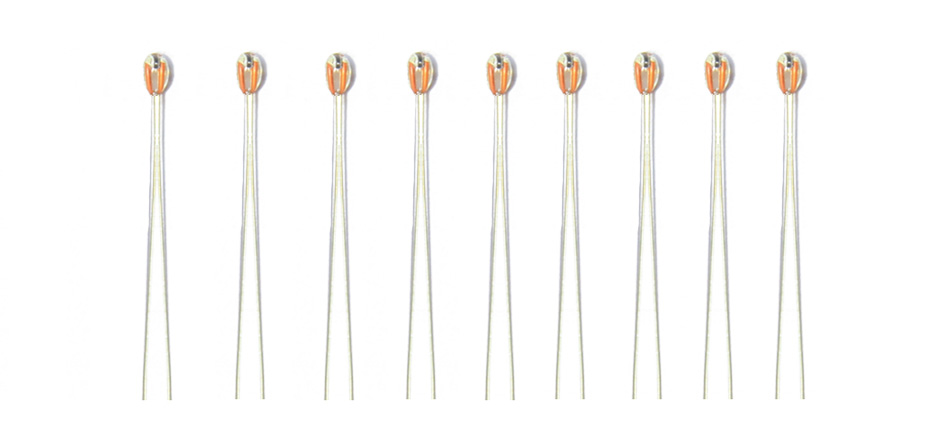

Glass Encapsulated Thermistor

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor Glass Encapsulated Type TGM 100KΩ Series



■ Features

 Band: Thinking Use: For Temperature Sensing/Compensation
 Body Size: Ф2.5 mm Operating temperature range: - 40℃ ~ +250

 ● ROHS compliant

 ● Glass-encapsulated and heat-resistive

 Agency recognition:



 UL/cUL File NO: E138827

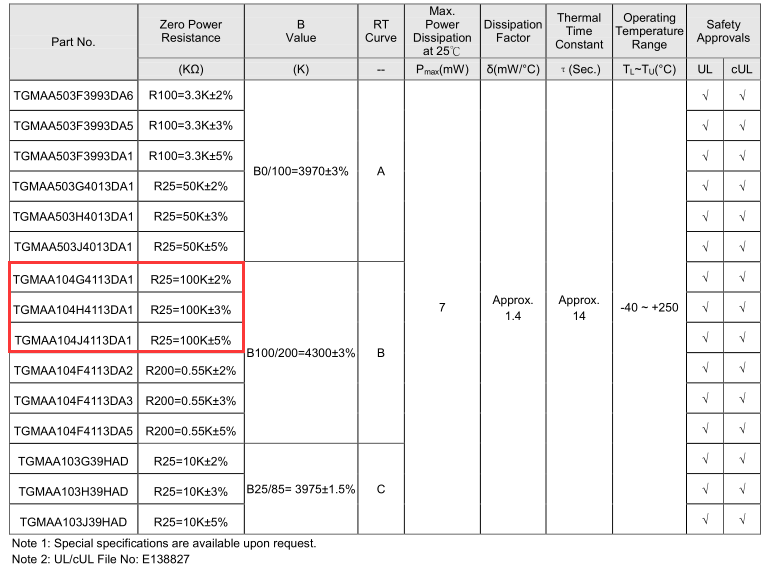

■ Electrical Characteristics


       The resistance, B value, wire and its length, processing methods all can be customized

        After you confirm the model, we will send you the samples and datasheet of this model


■ Recommended Applications

   1. Home appliances

   2. Automotive electronics

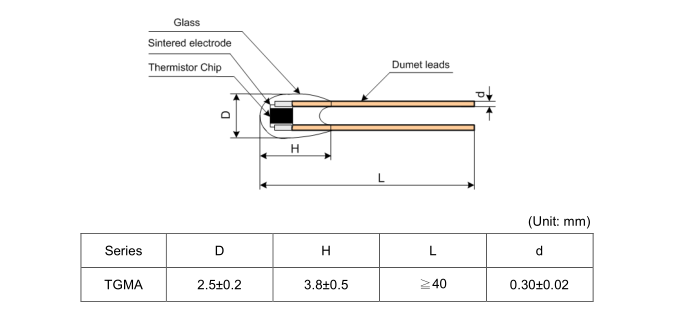

■ Structure and Dimensions

Structure and Dimensions.png

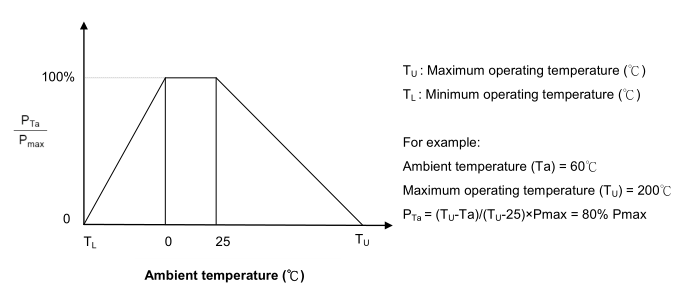

■ Max.Power Dissipation Derating Curve

Max. Power Dissipation Derating Curve.png

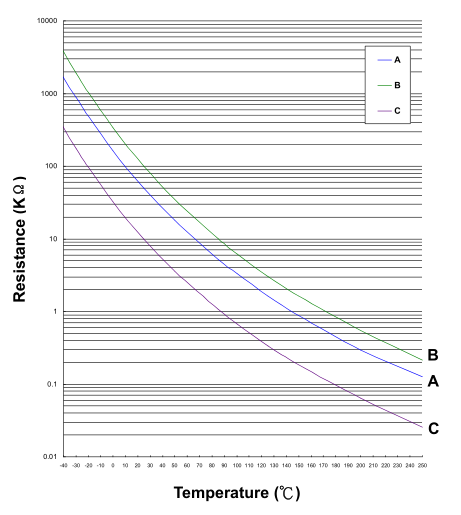

■ R-T Characteristic Curves

                            R-T Characteristic Curves (representative).png

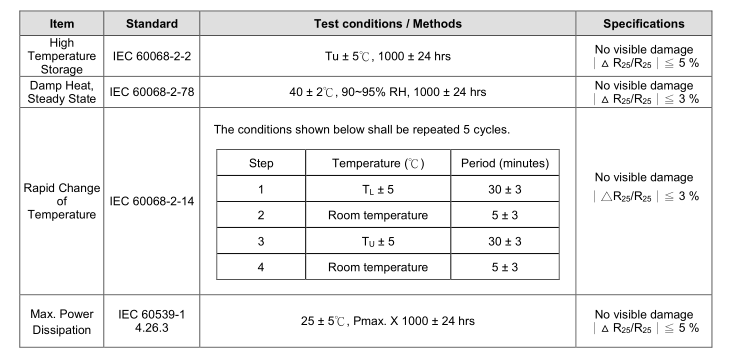

■ Reliability


■ Warehouse Storage Conditions of Products

   TTC 03 Warehouse storage conditions of products.png









   ●    We are so happy to answer any questions. send a message or E-mail to us. We will reply as soon as possible.

    ●   Ordering process:Confirm the product and model → Send samples → Confirm samples and quotes → Test passed → Order+ payment → Manufacture+payment → Deliver

    ●   Most importantly, we are responsible for air transport, 7 days can reach most cities in the world. you can get the goods quickly without any shipping costs

    ●  For THINKING brand, We deliver the sample and the goods are the fastest, Common products can bedelivered on the same day,and the price is the most competitive, Yes, the procurement directly from China is so easy
