Name: Negative Temperature Coefficient (NTC) Thermistor Surface Mounted Devices(SMD) Type TSM 100KΩ Series
■ Features
Band: Thinking | Use: For Temperature Sensing |

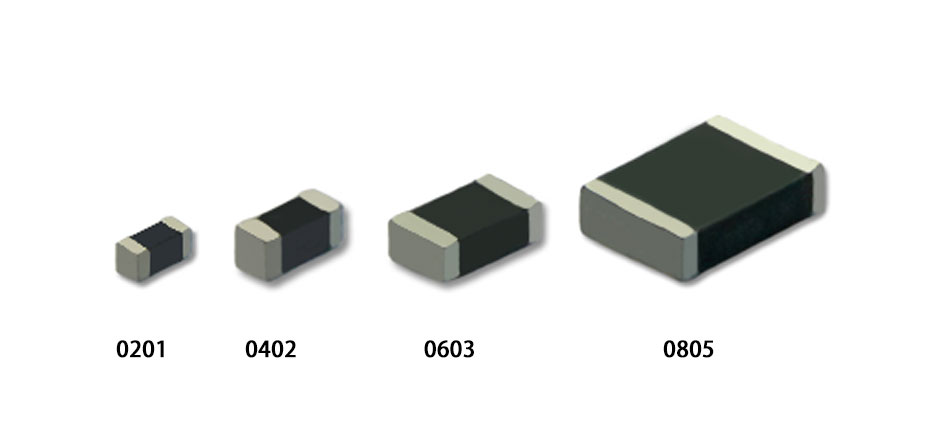

EIA Size: 0.6×0.3×0.35mm, 1×0.5×0.6mm, 1.6×0.8×0.95mm, 2×1.25×1mm | Operating temperature range: - 40℃ ~ +125℃ |
● ROHS & Halogen-Free(HF)compliant ● Highly reliable structure ● Wide resistance range ● Cost effective | Agency recognition: UL&CUL File NO:E138827 TUV File NO: R 50050155 CQC File NO: 12001080962 |

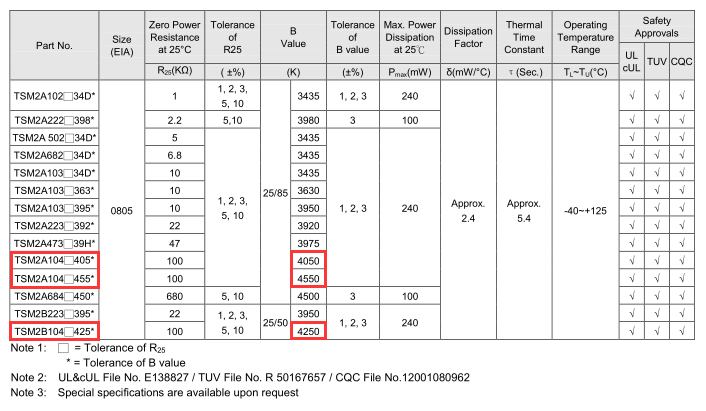

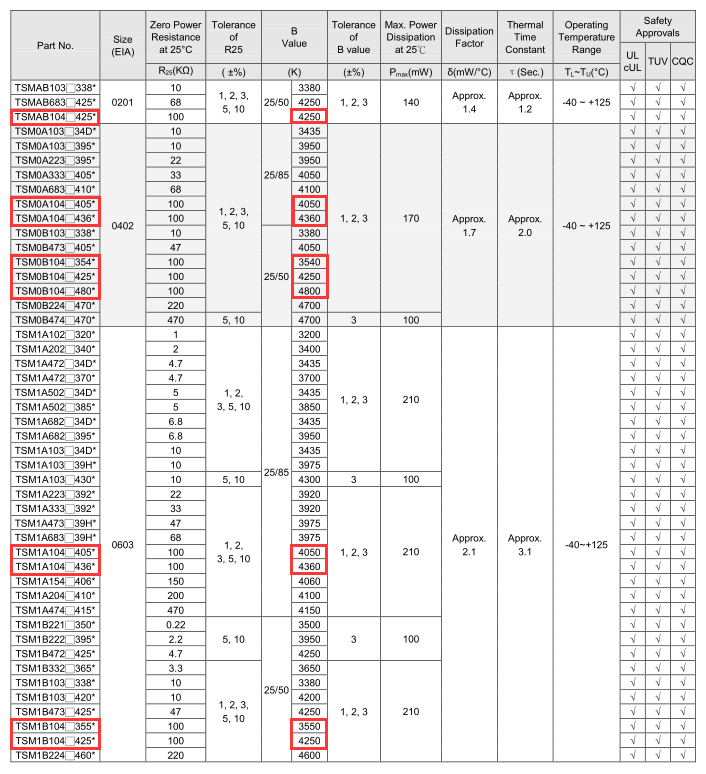

■ Electrical Characteristics (Special datasheet are available upon request)
● After you confirm the model, we will send you the samples and datasheet of this model
● Free samples

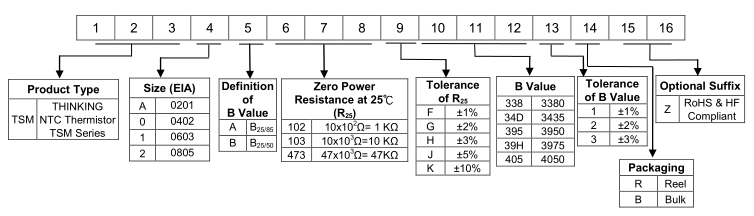

■ Part Number Code
● Complete model example: TSM0A104F3541RZ, TSM1A104F4051RZ
● Common Suffixes:1RZ
■ Recommended Applications
1. Battery pack
2. Motherboard, notebook and personal computer device
3. Liquid crystal display
4. Cellular phone
5. Bluetooth headset
6. Wi-Fi module

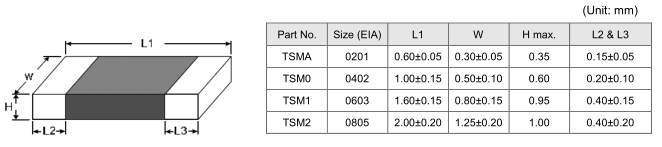

■ Structure and Dimensions

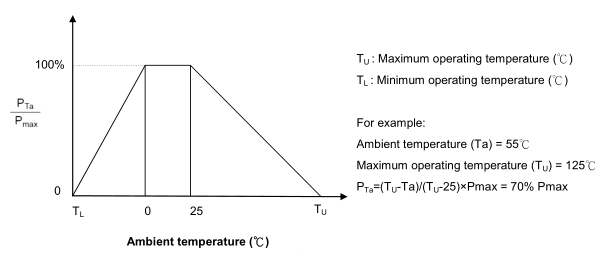

■ Max.Power Dissipation Derating Curve

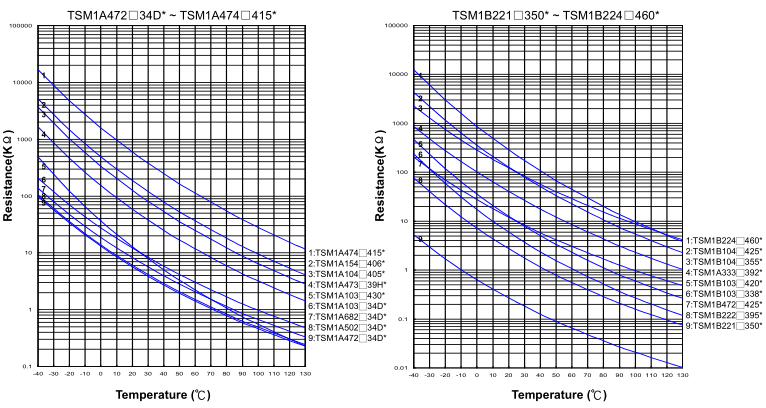

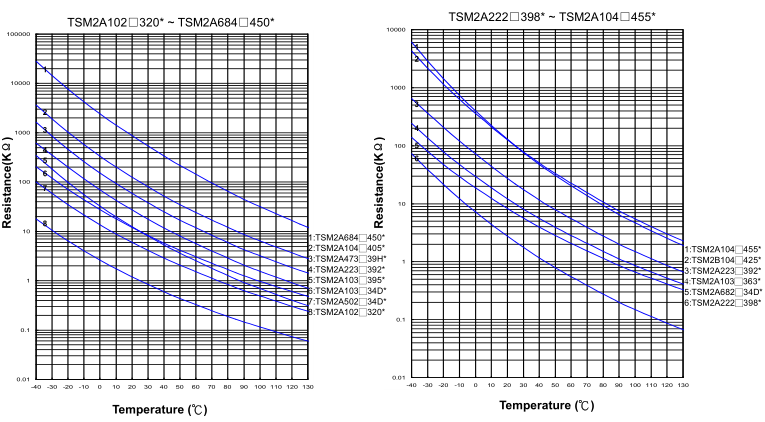

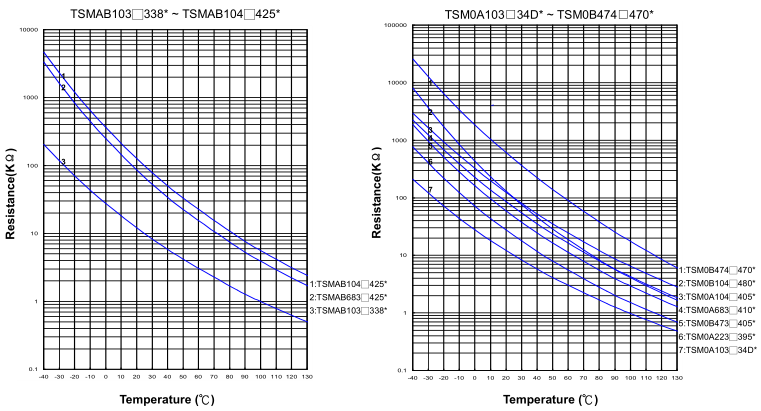

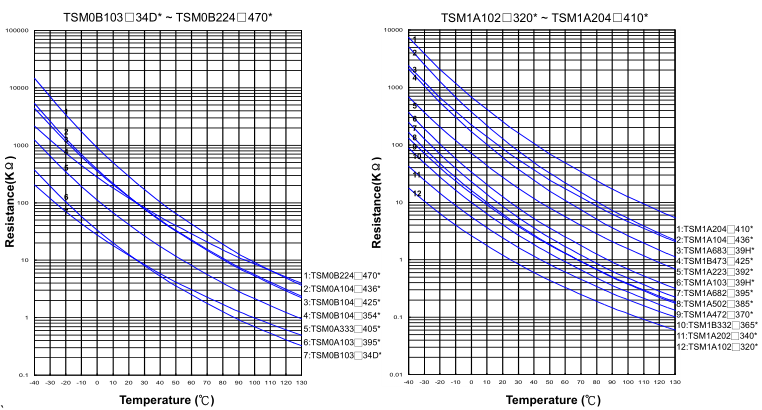

■ R-T Characteristic Curves
■ Soldering Recommendation
■ Recommended Soldering Pad Dimensions
■ Notice of Soldering and Mounting on PC Board
■ Reliability
■ Packaging
■ Quantity
■ Warehouse Storage Conditions of Products
