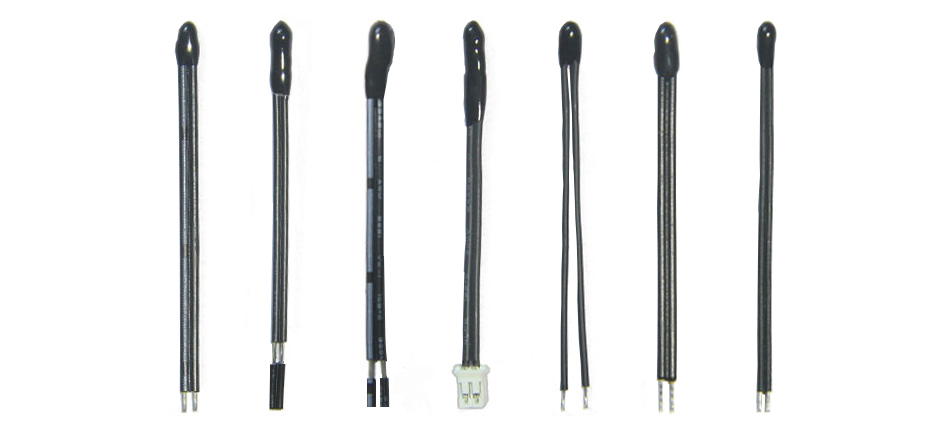

NTC 100K Epoxy Bead With Wires

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor Epoxy Bead With Wires Series

■ Features

Band: VETENG	Use: For Temperature Sensing/Compensation
Body Size: Ф ≥1.5 mm	Operating temperature range: - 40℃ ~ +100℃
● ROHS compliant ● Halogen-Free(HF)series are available ● Radial lead resin coated ● Wide resistance range ● Cost effective	Agency recognition:

■ Electrical Characteristics

Epoxy Bead Diameter	Zero Power Resistance	Tolerance of R25	B Value 25/85	Type of wires	End processing
(mm)	R25(KΩ )	(±%)	(K)	AWG	End processing
1.8~5.0	5	1,2,3,5	3435	30 28 26 24	cutting
	10		3470		Peeling
	20		3950		half peeling
	50		3975		Tin plating
	100		4050		Terminal +housing
	200		4400		Tube
	.....		.....		.....

● The resistance, B value, connector, wire and its length, color, processing methods all can be customized

● After you confirm the material combinations and parameters, we will send you the samples and datasheet of this model

■ Recommended Applications

1. Home appliances

2. Computers

3. Battery packs

4. Thermometers

● We are so happy to answer any questions. send a message or E-mail to us. We will reply as soon as possible.

● Ordering process：Confirm the product and model → Send samples → Confirm samples and quotes → Test passed → Order+ payment → Manufacture+payment → Deliver

● Most importantly, we are responsible for air transport, 7 days can reach most cities in the world. you can get the goods quickly without any shipping costs
