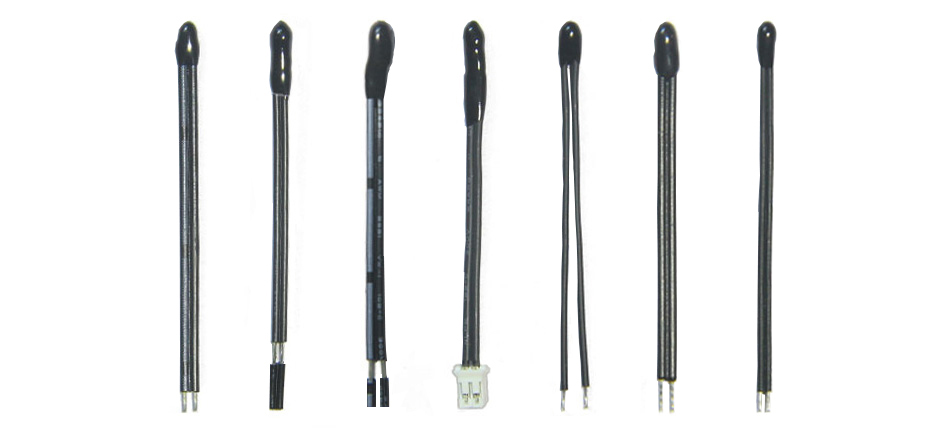

NTC 10K Epoxy Bead With Wires
Name: Negative Temperature Coefficient (NTC) Thermistor Epoxy Bead With Wires 10KΩ Series
■ Features
| Band: VETENG | Use: For Temperature Sensing/Compensation |
| Body Size: Ф ≥1.5 mm | Operating temperature range: - 40℃ ~ +100℃ |
● ROHS compliant ● Halogen-Free(HF)series are available ● Radial lead resin coated ● Wide resistance range ● Cost effective | Agency recognition:
|
■ Electrical Characteristics
Epoxy Bead Diameter | Zero Power Resistance | Tolerance of R25 | B Value 25/85 | Type of wires | End processing |
| (mm) | R25(KΩ ) | (±%) | (K) | AWG | |
1.8~5.0 | 5 | 1,2,3,5 | 3435 | 30 28 26 24 | cutting |
| 10 | 3470 | Peeling | |||
| 20 | 3950 | half peeling | |||
| 50 | 3975 | Tin plating | |||
| 100 | 4050 | Terminal +housing | |||
| 200 | 4400 | Tube | |||
| ..... | ..... | ..... | |||
● The resistance, B value, connector, wire and its length, color, processing methods all can be customized
● After you confirm the material combinations and parameters, we will send you the samples and datasheet of this model
■ Recommended Applications
1. Home appliances
2. Computers
3. Battery packs
4. Thermometers
● We are so happy to answer any questions. send a message or E-mail to us. We will reply as soon as possible.
● Ordering process：Confirm the product and model → Send samples → Confirm samples and quotes → Test passed → Order+ payment → Manufacture+payment → Deliver
● Most importantly, we are responsible for air transport, 7 days can reach most cities in the world. you can get the goods quickly without any shipping costs
