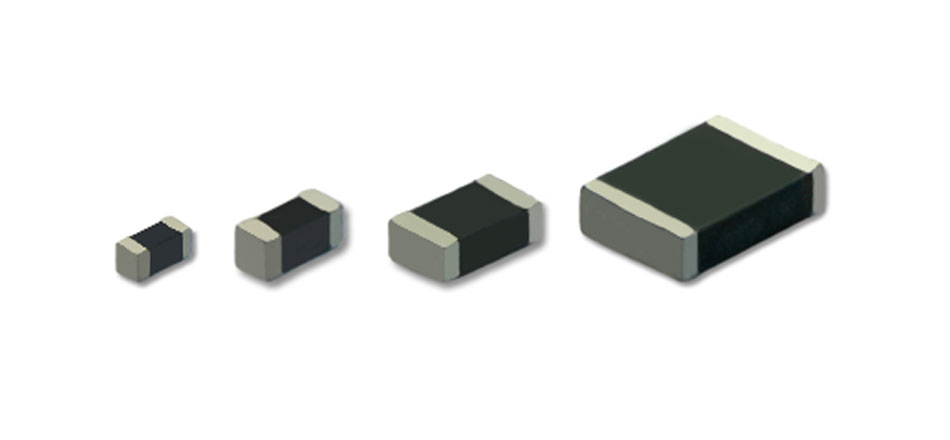

Automotive TSM-C Series

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor Surface Mounted Devices(SMD) Type TSM-C Series For Automotive



■ Features

 Band: Thinking Use: For Temperature Sensing
 EIA Size: as follows Operating temperature range: - 50℃ ~ +150

 ● Qualification based on AEC-Q200 Rev-C

 ● Superior stability in high-temperature   and high-humidity environment

 ● RoHS & Halogen Free (HF) compliant

 Agency recognition:

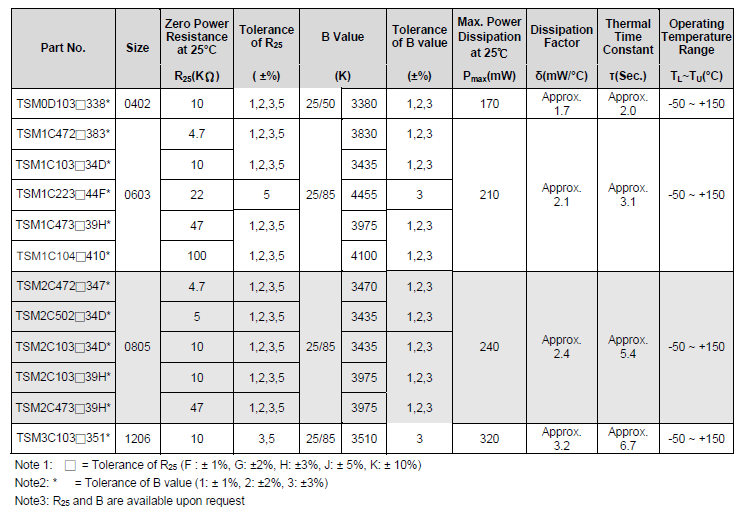

■ Electrical Characteristics  (The same resistance value,  the B value of different brands is

 different, you can only choose the most similar one)

TSM-C DATESHEET.png

    ●  Hot models: TSM1C103, TSM1C104, TSM2C103

      After you confirm the model, we will send you the samples and datasheet of this model

      Free samples

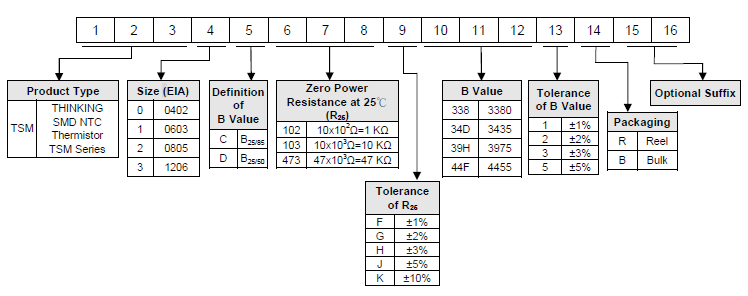

■ Part Number Code


     ●  Complete model example: TSM1C103F34D1R

     ●  Common Suffixes:1R


■ Recommended Applications

    1. Car audio, car navigation

    2. Various engine control units

    3. Circuits for ETC equipment

    4. Various motor driving circuits

    5. Temperature compensation for various circuits

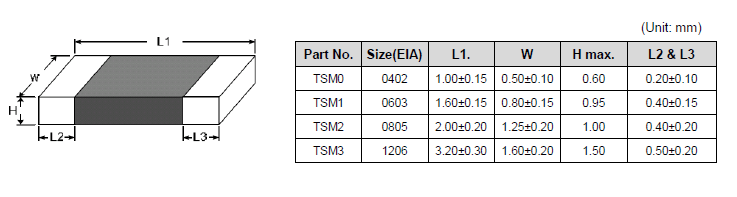

■ Structure and Dimensions

TSM-C SIZE.png

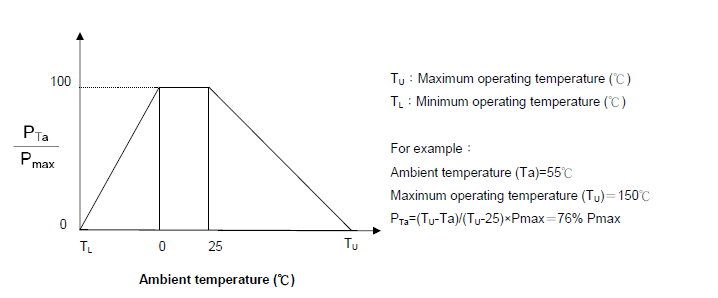

■ Max.Power Dissipation Derating Curve

TSM-C M.png

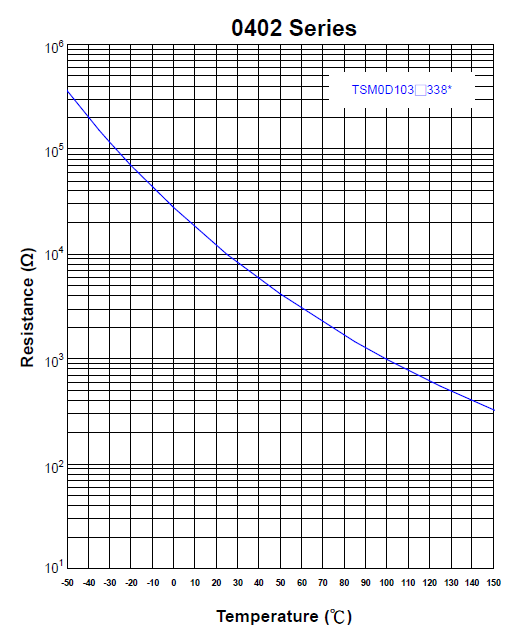

■ R-T Characteristic Curves

                     R-T 0402.png

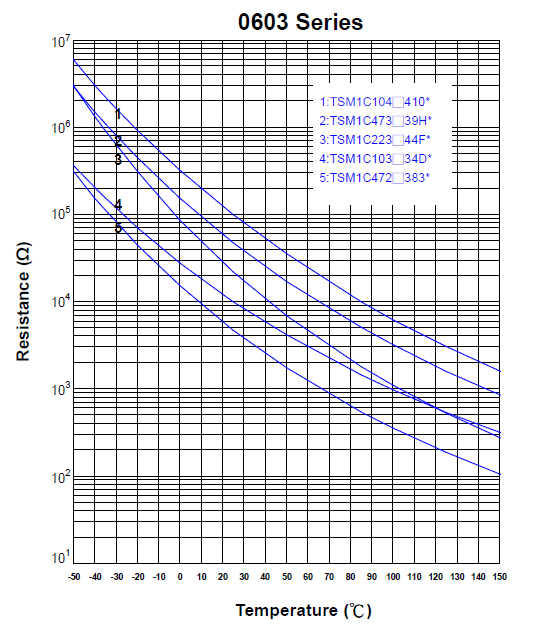

                    R-T 0603.png

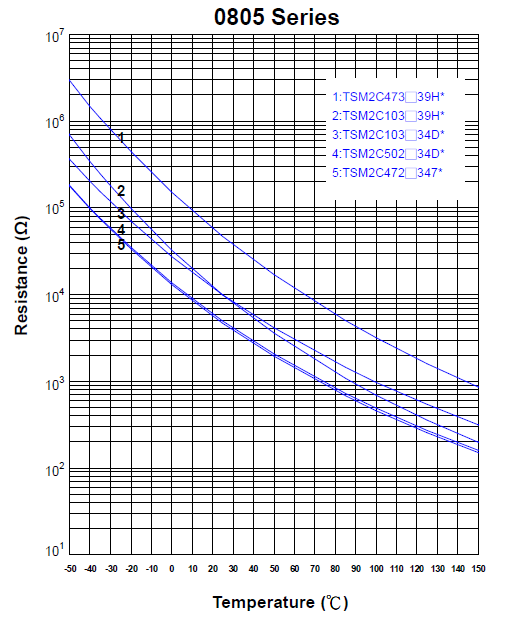

                     R-T 0805.png

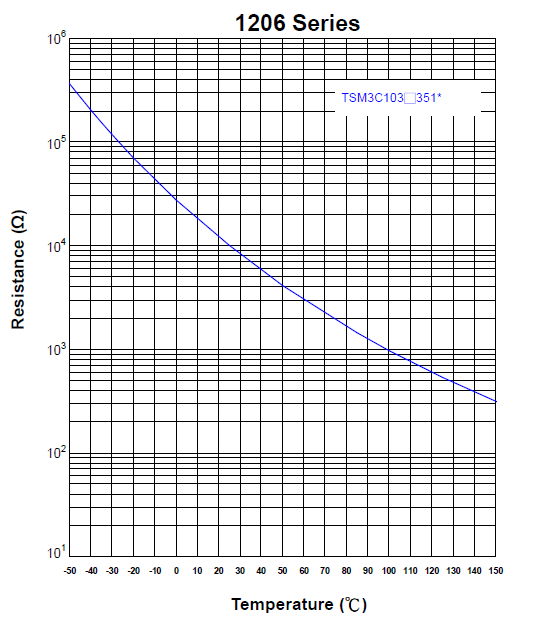

                     R-T 1206.png

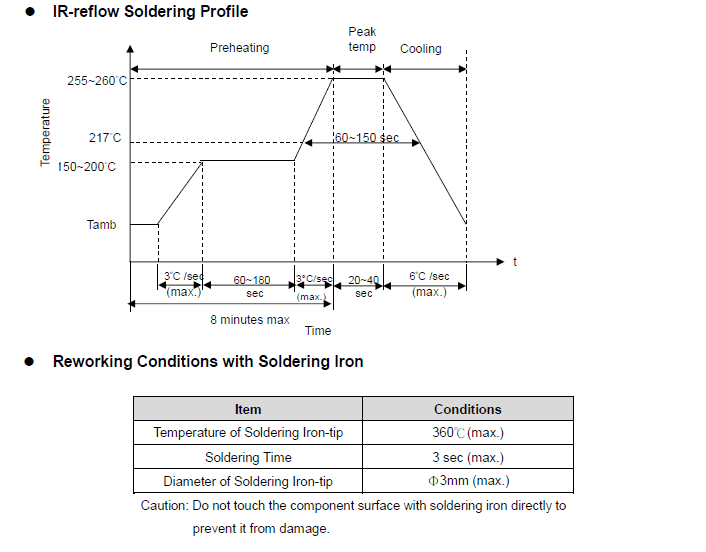

■ Soldering Recommendation

    TSM-C S.png

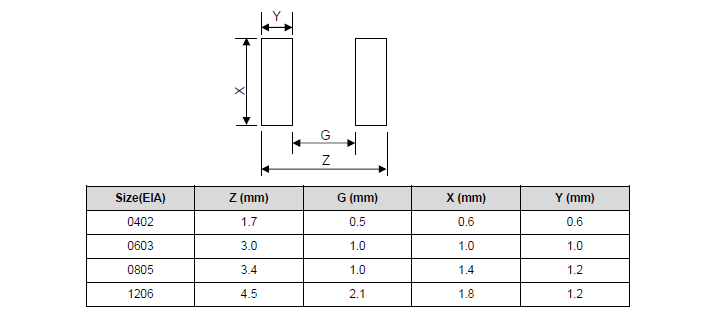

■ Recommended Soldering Pad Dimensions

   TSM-C R.png

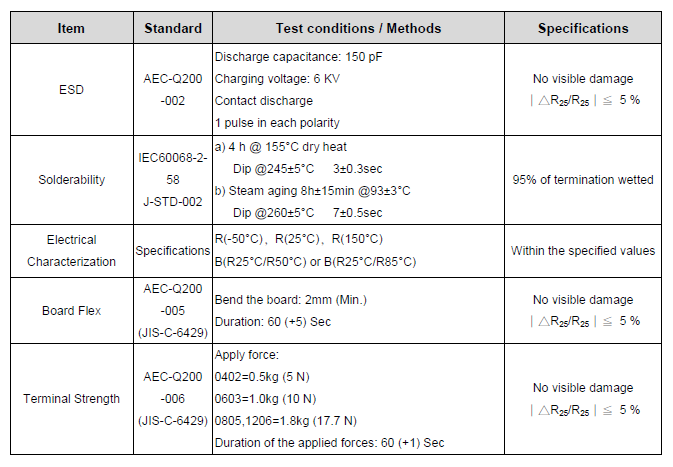

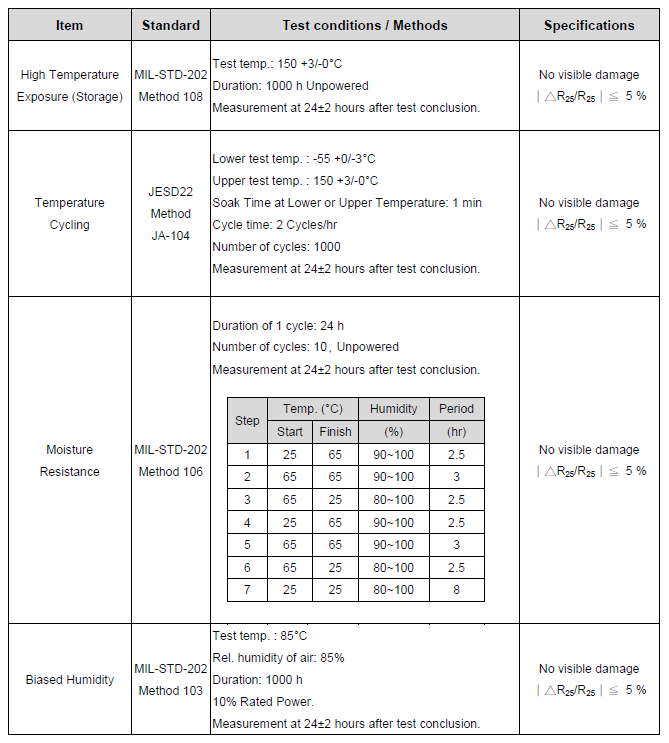

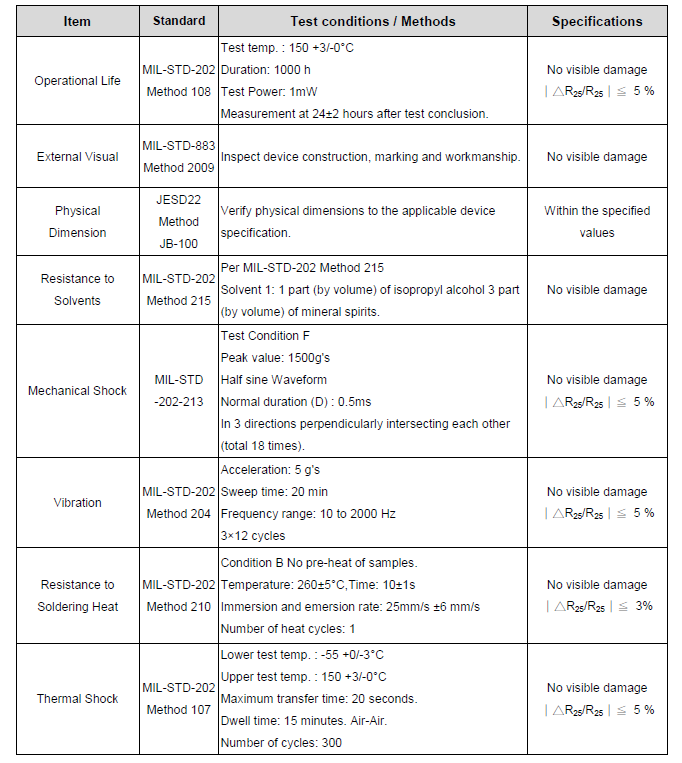

■ Reliability (based on AEC-Q200 Rev-C)

  TSM-C R1.png

TSM-C R2.png

 TSM-C R3.png


■ Packaging

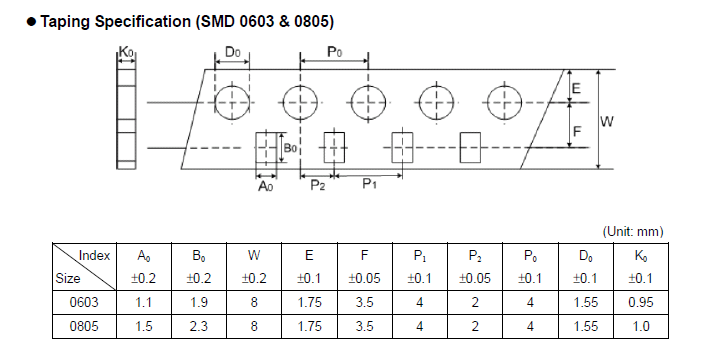

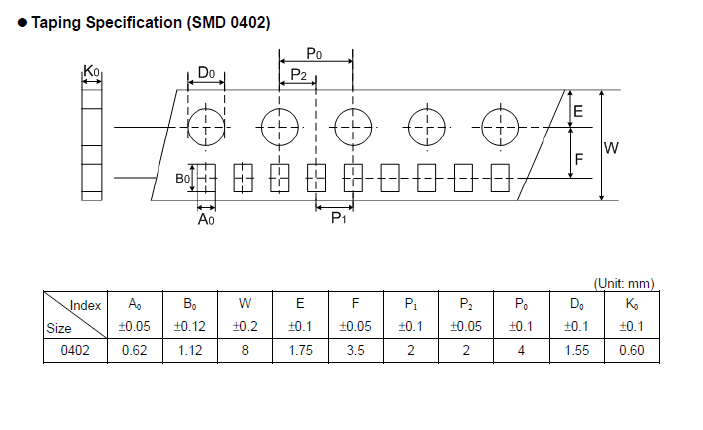

 TSM-C 0402.png

TSM-C 0603,0805.png

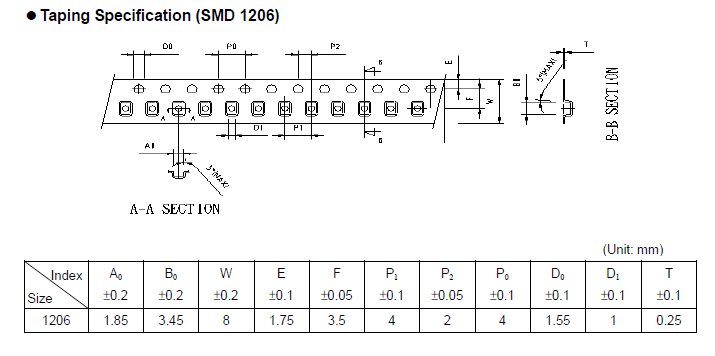

TSM-C 1206.png

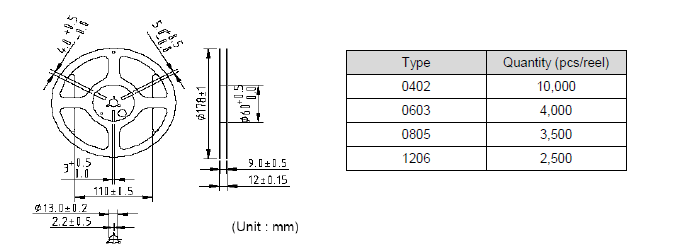

■ Quantity

  TSM-C Q.png


■ Warehouse Storage Conditions of Products

   Warehouse Storage Conditions of Products.png
